Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40
Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40
Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40
Click image to open expanded view
Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40
Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40
Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40

Turbocharger, Gen2 GTX3584RS w/ T3 UND T31 NARROW VBAND .63 A/R hsg, HOSE CONNECTION COMP GRT-TBO-J40

Price
$3,005.78

Product Description:

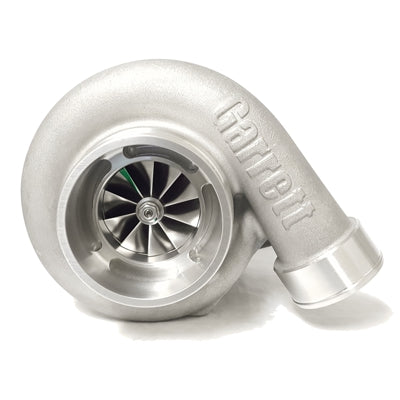

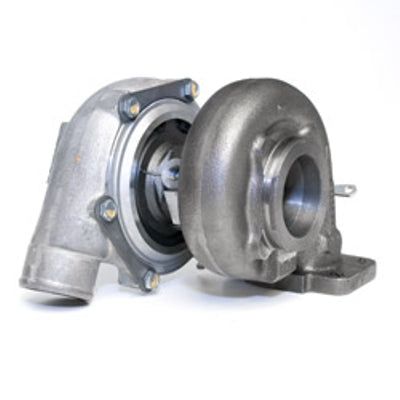

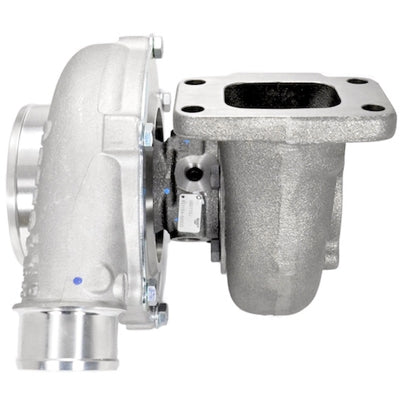

Garrett Gen2 GTX3584RS with .63 A/R T3 undivided T31 narrow v-band turbine housing and hose connection compressor housing. Compact package capable of 1,000 HP.

    • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
    • Ultra high flow "RS" blade profile turbine wheel
    • Dual ball bearing CHRA rotating assembly
    • Compact package capable of 1,000 HP
Product Specifications:
  • Compressor Wheel Inducer: 67 mm
  • Compressor Wheel Exducer: 84 mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: T04S Frame with a 4" inlet and 2.5" v-band outlet w/ Anti-Surge
  • Turbine Wheel Inducer: 68 mm
  • Turbine Wheel Exducer: 62 mm
  • Turbine Wheel Trim: 84

INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • V-Band "T31" Narrow Outlet Flange (for Downpipe): FLS-099
  • V-Band Outlet Clamp: CLA-012

    •  NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
