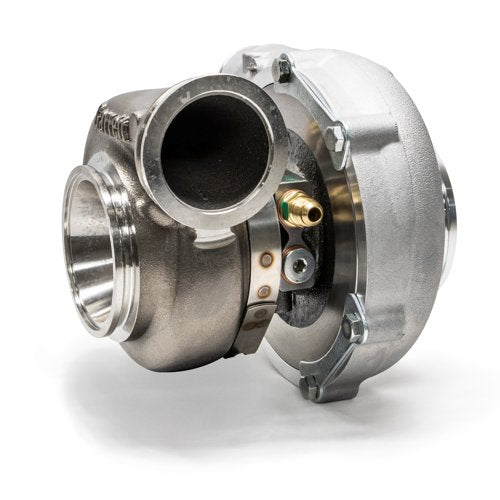

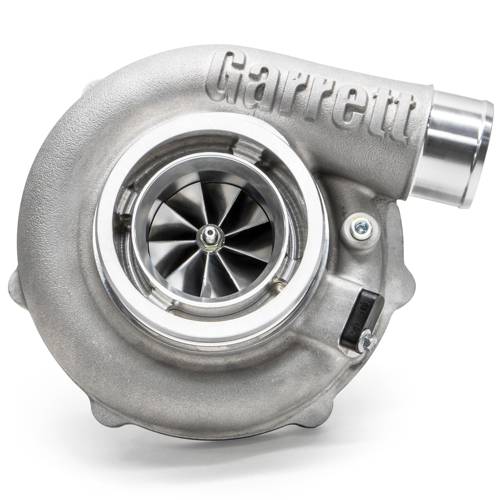

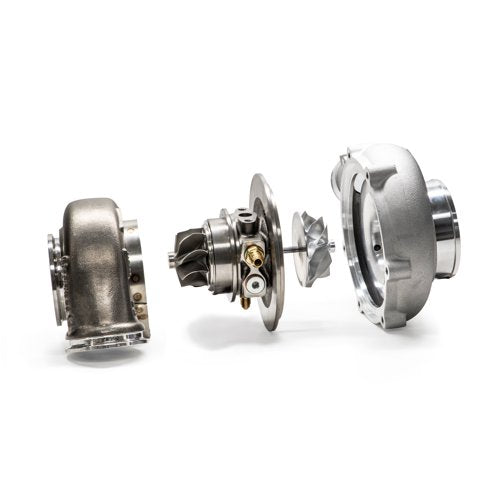

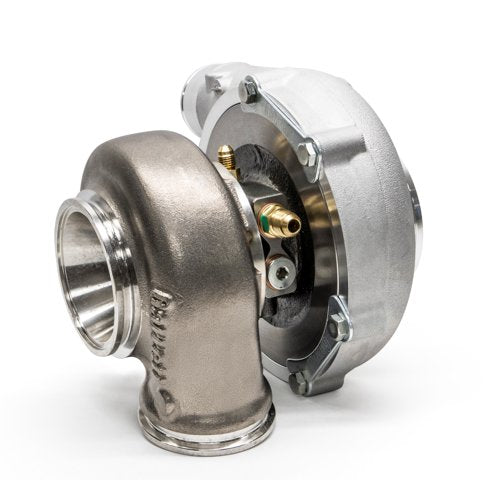

Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Click image to open expanded view
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57
Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57

Turbocharger, Garrett G35-900, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N 880700-5002S GRT-TBO-L57

Price
$3,080.83

Product Description:

Garrett® G35-900 standard turbo assembly kit, 0.83 A/R O/V, V-Band In/Out.

Product Features:

  • New G Series compressor wheel aerodynamics
  • Fully machined speed sensor and pressure ports
  • Standard and reverse rotation configurations available
  • Oil restrictor and water fittings included with purchase
  • One piece center housing and backplate for increased durability
  • 4 water jacket ports for customizable installation
  • Mar-M turbine wheel material rated up to 1050° C | 1922° F
  • Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
Product Specifications:
  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 65
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Includes Turbine Housing Inlet & Outlet V-Band Clamps

INSTALLATION HARDWARE:



  • Inlet V-Band Flange (For Turbo Manifold): FLS-350
  • Out V-Band Flange (For Down-pipe): FLS-351
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • Oil drain fasteners: FST-034
  • Boost Pressure Port Fitting: FTG-198

  • Speed Sensor Kit: ACS-032

    • NOTE: Alternate coolant and oil fittings and flanges are available.

    Compressor & Turbine Maps:
