Radium Fuel Rail, Top Feed Conversion, Nissan SR20DET (S13)
- Price
- $218.45
Product Description:
Click here to download installation instructions (PDF)
Click here for old discontinued 20-0158 fuel rail instructions (PDF)
OVERVIEW
This CNC machined fuel rail for the Nissan SR20DET features a large 0.69 inch internal bore and high flow ports that accept a wide variety of adapter fittings to suit any custom installation. The black satin anodized finish makes it safe to use with all blends of gasoline and alcohol fuels. It installs to the factory fuel rail mounting points and uses aftermarket top-feed fuel injectors.
PORTS AND FITTINGS
This fuel rail features 3 large threaded ports (ends and one on the bottom) that are -8AN ORB female. It also has a 1/8NPT female port on the top.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

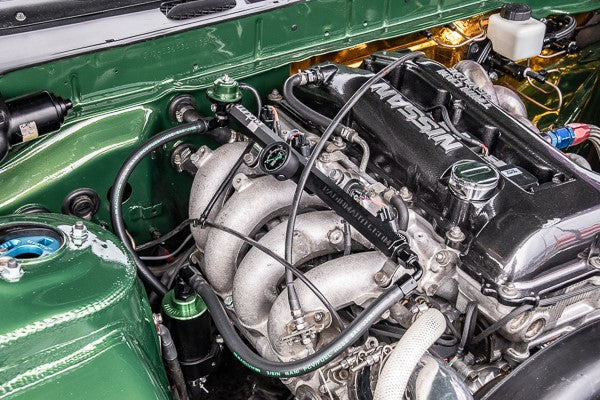

This fuel rail features an extra 8AN ORB port in the center on the bottom. This can be used as a location for a Radium FPD-R fuel pulse damper (P/N 20-0776), as shown below. Fuel pulse dampers can be found HERE. Or this port can be plugged.
INTAKE MANIFOLD COMPATIBILITY
This fuel rail kit is designed for the Nissan S13 SR20DET (RWD configuration) intake manifold. This S13 SR20DET fuel rail will also work on some aftermarket intake manifolds that use the OEM fuel rail.
For the SR20DET S14/S15 fuel rail, go HERE.
For the SR20VE go HERE.
NOTE: 3 of the plastic OEM 5mm spacers (Nissan 17522-10V00) must be reused and placed under the included mounting brackets for thermal insulation and proper fuel rail height.
INJECTOR COMPATIBILITY
The Radium fuel rail converts from side feed fuel injectors to top feed, allowing the use of high flow aftermarket fuel injectors. Fuel injectors are not included and not sold by Radium Engineering. Reference the diagram below to ensure compatible fuel injectors are obtained. For this fuel rail, a 34mm tall universal injector with 14mm upper and lower O-rings must be used. Most popular injector suppliers offer a fuel injector in this configuration. Refer the injector supplier to this page if needed.
NOTE: Short 34mm injectors are used in this kit because hood clearance may become an issue if taller injectors are used.
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit:
Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

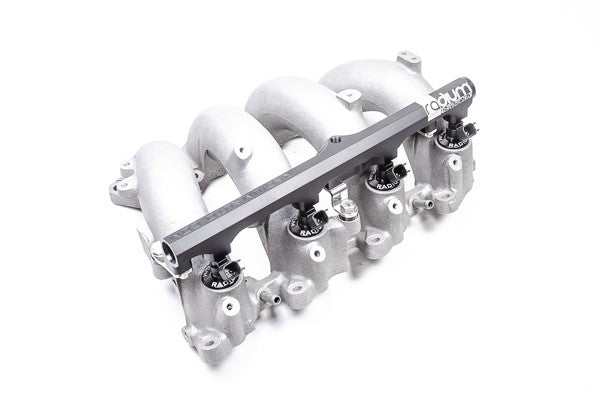

The billet aluminum injector seats are anodized and laser etched and press into the intake manifold as shown. They provide a sealed base for the top feed injectors.
INCLUDED

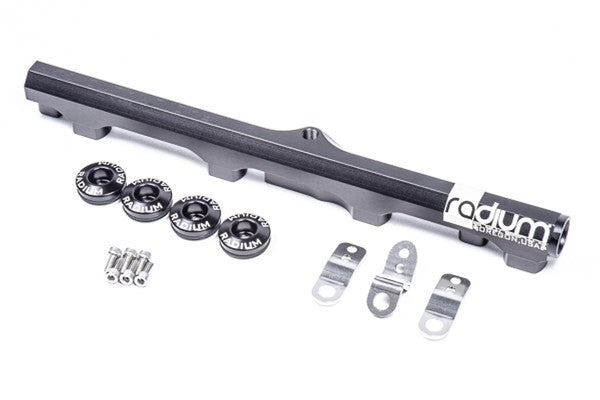

The photo below shows what is included in this kit. Fittings must be purchased separately.
-Black Anodized Aluminum Fuel Rail
-4x Black Anodized Aluminum 30mm Injector Seats
-3x Stainless Steel Mounting Brackets
-6x Stainless Steel Mounting Bolts
