Radium Fuel Cells, RA-Series

Price
$797.95
Size:6 GALLON 20-0606

Ordering a fuel cell system can be complex.
Use the online tool below to configure a complete fuel cell.

OUT OF STOCK CELLS CAN TAKE UP TO 8 WEEKS TO PROCESS


OVERVIEW
A competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI. To learn why a certified fuel cell is superior to a fabricated tank, CLICK HERE.

These fuel cells are excellent for all types of motorsports disciplines including road racing, time attack, drifting, rally, off-road racing, endurance, and many more. The large 22 gallon fuel cell is shown below.

CLICK HERE to watch a fuel cell installation video


CONSTRUCTION
The heart of the fuel cell is the bladder (shown below in green). This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).

The bladder is housed in a lightweight powder coated aluminum enclosure that protects from damage and debris. Pre-cut explosion suppressing anti-slosh foam is included as well as an innovative threaded aluminum nut ring which makes fuel pump installation fast and easy.


CERTIFICATIONS
The RA-series fuel cells have been tested and approved by FIA and SFI. All RA-series fuel cells are serialized and come with both certifications and associated paperwork.

Certifications are valid for 5 years from the date of manufacture. Radium does NOT offer fuel cells without certifications.

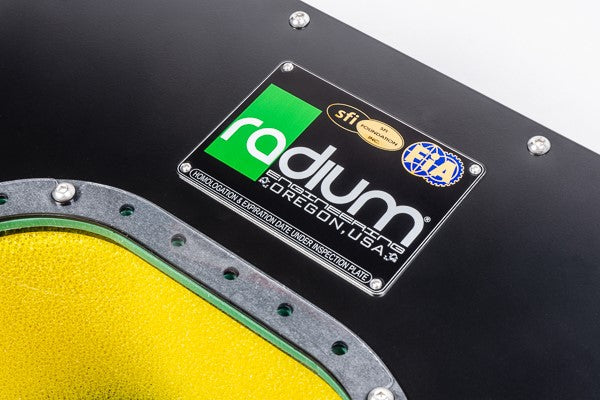

During tech inspections, certification decals on the bladder can be easily viewed by removing the inspection plate (shown above).

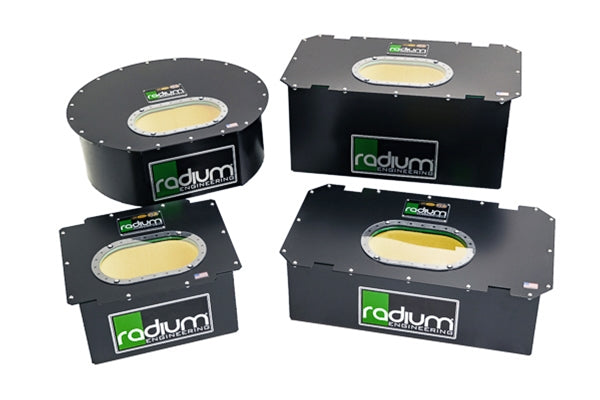

SIZES
The manufacturing process for these fuel cell bladders inherently require large tolerances creating a variance in physical size. The volumes listed below are the expected ranges for each bladder. NOTE: These measurements do not account for any objects inside the fuel cell.

20-0606
Gallons: 5.4 - 6.0
Liters: 20.3 - 22.7

20-0610
Gallons: 9.2 - 10.0
Liters: 34.8 - 37.9

20-0611
Gallons: 10.3 - 10.5
Liters: 38.9 - 39.7

20-0614
Gallons: 13.7 - 14.0
Liters: 51.9 - 53.0

20-0622
Gallons: 21.5 - 22.0
Liters: 81.5 - 83.3




All fuel cell sales are FINAL and cannot be returned or exchanged. Measure carefully prior to ordering.


INCLUDED
-Seamless Polymer Bladder
-Explosion Suppressing Anti-Slosh Foam
-Powder Coated Aluminum Enclosure
-Anodized Aluminum Nut Ring
-Removable Inspection Plate
-FKM 6x10 24-bolt Gaskets, x2
-Stainless Steel Hardware
-Certification of Conformance


IMPORTANT-Read Before Purchasing-
1. All fuel cell sales are final and cannot be returned or exchanged.
2. If ordering a fuel cell with an FCST, the products will be shipped assembled.
3. International Customers: Please contact sales@radiumauto.com for a shipping quote on fuel cells.


OPTIONAL ACCESSORIES
An anti-starvation fuel pump system (FCST) can be found HERE.
A weld-in mounting cage can be found HERE. For the spare tire cell, mounts can be found HERE.
Carbon fiber lids are available for select fuel cells. They can be found HERE.
A complete fuel cell package can be ordered using Radium's Fuel Cell Configurator below:
