Multi-Function CAN Gauge Size: 52mm (2")
Multi-Function CAN Gauge Size: 52mm (2")
Multi-Function CAN Gauge Size: 52mm (2")
Click image to open expanded view
Multi-Function CAN Gauge Size: 52mm (2")
Multi-Function CAN Gauge Size: 52mm (2")
Multi-Function CAN Gauge Size: 52mm (2")

Multi-Function CAN Gauge Size: 52mm (2")

Price
$419

Product Description:

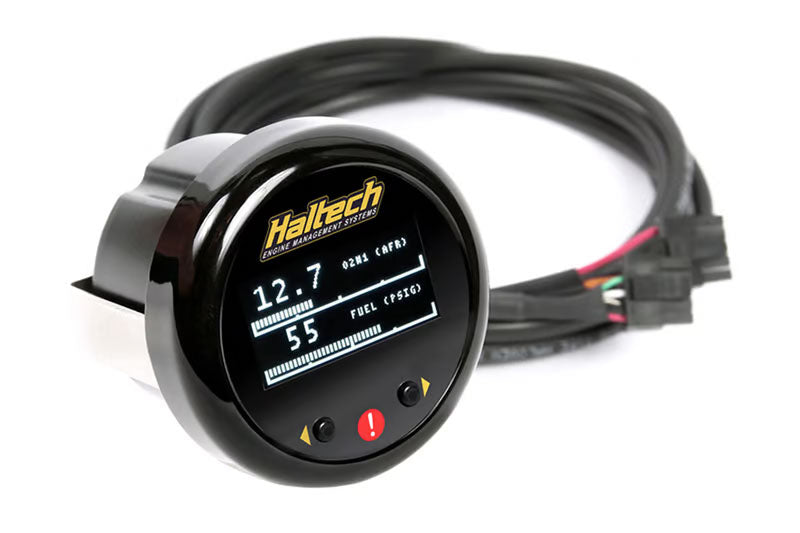

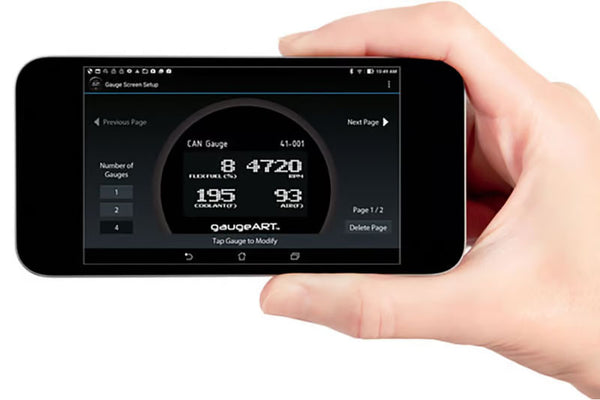

Haltech's new Multi-function CAN Gauge displays real-time data from your Haltech ECU. Easily customize your gaugeART CAN Gauge to display the data you want to see with the included gaugeART CAN Gauge App (requires Android 4.4 or later or Apple iOS 9.1 or later). The easy to use app on your smartphone or tablet uses a wireless connection to the gauge for easy setup and customization.
  • Set up via gauge-mounted buttons or a mobile app
  • High contrast, dimmable OLED display

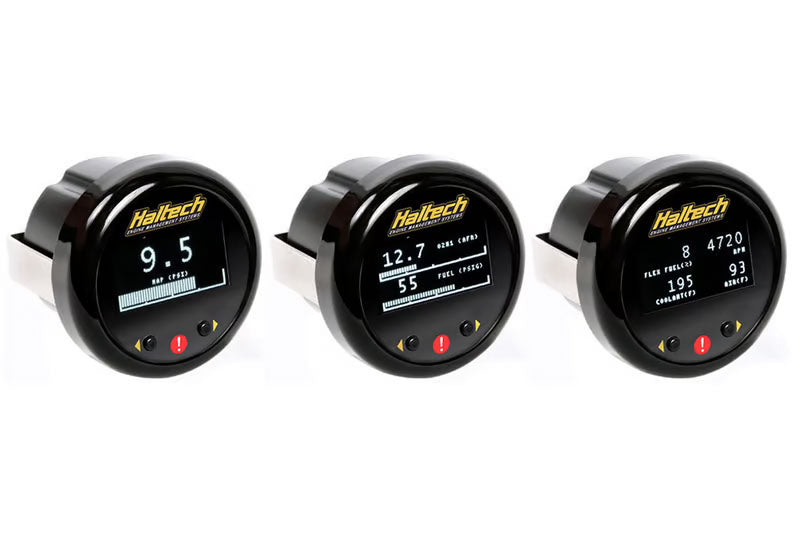

  • 1, 2, or 4 gauge layouts on up to 10 different pages
  • Custom warning points with special warning screens
SUPPORTED PARAMETERS
  • Boost Pressure
  • Air/Fuel Ratio
  • Coolant Temperature
  • Fuel Pressure
  • Ethanol content
  • Air Temperature
  • Battery Voltage
  • Coolant Pressure
  • Fuel Level
  • Fuel Trim
  • Gear Position
  • Injector Duty
  • Nitrous Pressure
  • Oil Pressure
  • Transmission Line Pressure
  • Throttle Position
  • Transmission Oil Temperature
  • Turbo RPM
  • Wheel Speed
  • Wheel Slip
  • All above can be displayed without additional sensors.
COMPATIBLE WITH
  • Haltech Platinum Sprint Series
  • Haltech Platinum Sport Series
  • Haltech Pro Plugin Series
  • Haltech Elite Series
  • Haltech Nexus Series

Suits: Haltech Version 2 CAN bus protocol.

Includes: 52mm (2") CAN Gauge, gaugeART DTM-style CAN cable - 2.5m (8ft), mounting bracket.

Notes: This product is direct Plug'n'Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or multiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Series ECU you will need a DTM4 to Tyco adaptor cable Part No. HT-130040.

IMPORTANT EMISSIONS NOTICE:
In many states, it is unlawful to tamper with your vehicle's emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway. Using Haltech products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state by state details in the USA). It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using or installing any Haltech product.
