Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Click image to open expanded view
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32
Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32

Gen2 GTX3071R DBB turbo w/ T3 Undivided .63 A/R Welded 3" GTVB (81mm centering ring) GRT-TBO-B32

Price
$2,363.73
Product Description:

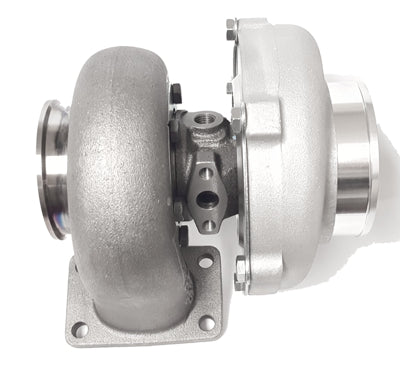

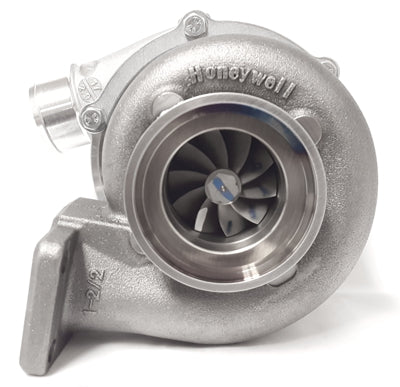

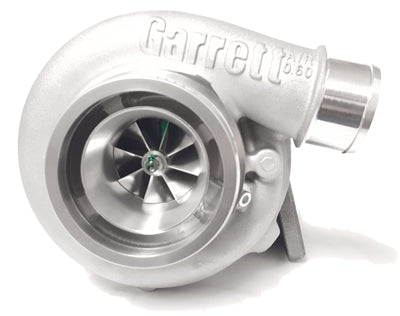

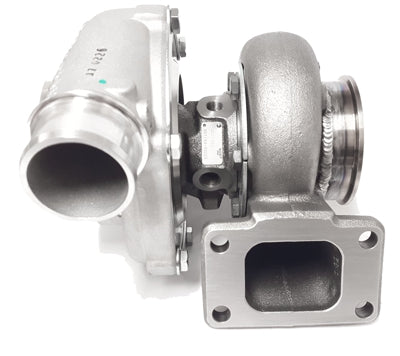

    Garrett GEN2 GTX3071R dual ball bearing turbocharger with T31 inlet and welded 81mm GTVB in the .63 A/R Turbine Housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84



INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 3" GT V-Band Outlet Flange (for Downpipe): FLS-246
  • Matching V-Band Outlet Clamp: CLA-048

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:
