GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
Click image to open expanded view
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896
GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896

GEN2 Garrett GTX3582R (Compact T04E Frame 3" inlet Comp. Hsg.) & 1.01 A/R Garrett DIVIDED VB Entry GRT-TBO-896

Price
$2,996.53

PRODUCT DESCRIPTION:

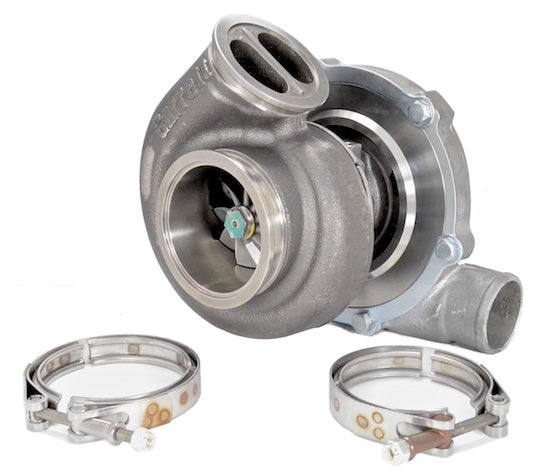

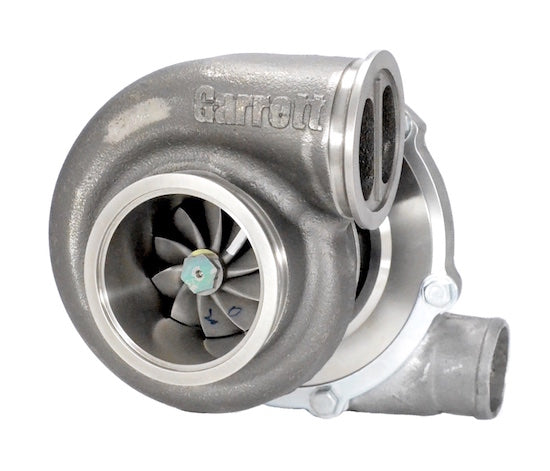

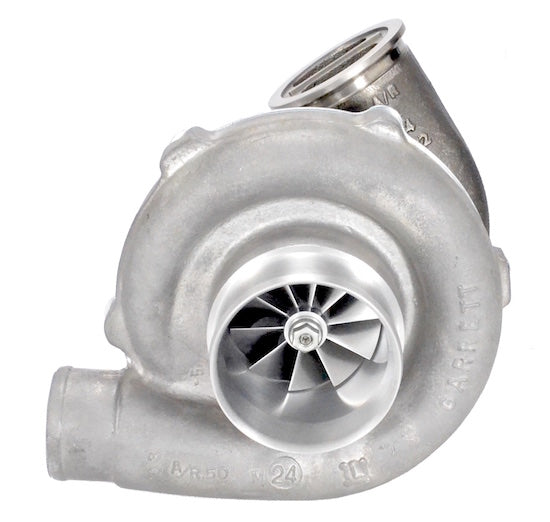

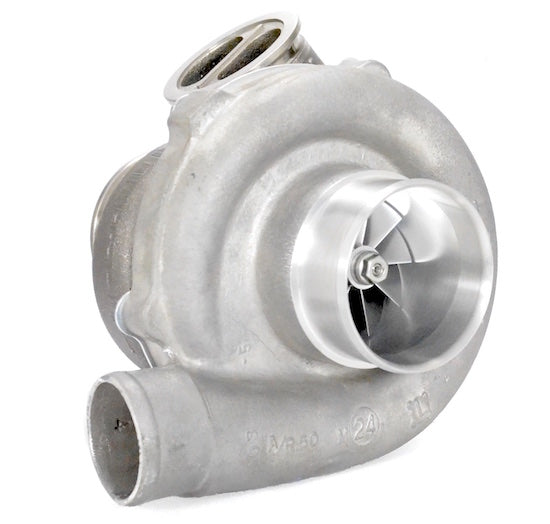

Garrett GEN2 GTX3582R dual ball bearing turbocharger with a compact T04E frame (3" inlet and 2" outlet compressor housing) and a 1.01 A/R Divided (Twin-scroll) V-Band Inlet and GT 3" V-Band outlet turbine housing (Ni-Resist Material). Advanced GEN2 billet compressor wheel capable of 850HP!

The Garrett GEN2 GTX3582R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel.

PRODUCT FEATURES:

  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 66mm
  • Compressor Wheel Exducer: 82mm
  • Compressor Wheel Trim: 64
  • Compressor Housing: Compact T04E Frame (3" Inlet & 2" Outlet)
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.01 A/R Divided (Twin-Scroll) Inlet & GT 3" V-Band Outlet

    •

    INSTALLATION HARDWARE:

  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

  • V-Band Inlet Clamp: (product code: CLA-047
  • V-Band Outlet Clamp: (product code: CLA-048
  • GT 3" V-Band Outlet Flange (for Downpipe): FLS-246
  • Divided V-Band Inlet Flange (for Turbo Manifold): HSG-250

    •



    NOTE: Alternate coolant and oil fittings and flanges are available.


    COMPRESSOR & TURBINE MAPS:






    ​Order Cancellation:

    Orders can be cancelled for a 5% fee up to 48 hours after the order has been placed. After 48 hours, order cancellations will be subject to a 40% restocking fee.

    We reserve the right to cancel orders at our discretion if we suspect the order is fraudulent. We will attempt to contact you before cancelling.
    Shipping Information

    Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.

    **ALL TURBO KITS ARE BUILT TO ORDER** 4-6 WEEK LEAD TIME.

    **ALL FUEL KITS ARE BUILT TO ORDER** 2-3 WEEK LEAD TIME
