Price
$3,005.78
Select Turbine Housing::T3 Inlet - 3" GT V-Band Outlet & .82 A/R
Select Compressor Housing::4" Inlet - Anti Surge - 2.5" Outlet (Default/Standard)

PRODUCT DESCRIPTION:

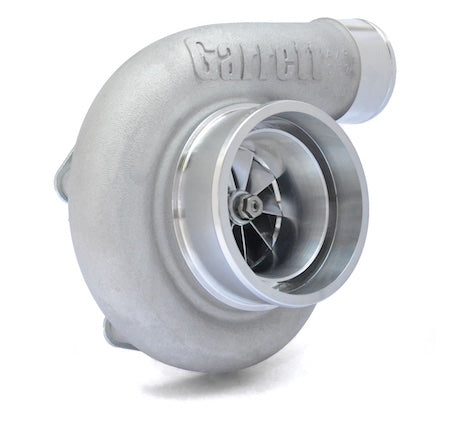

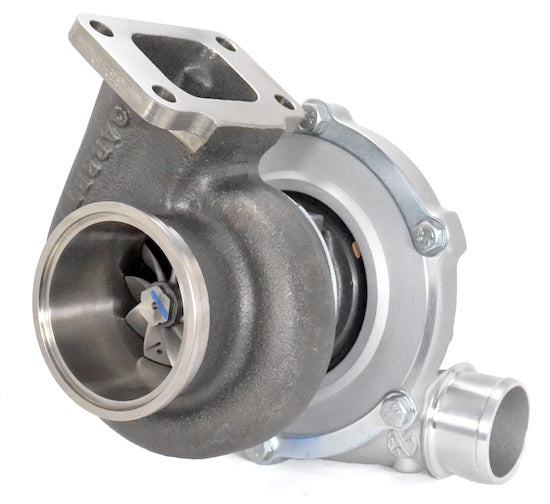

Garrett GTX3584RS dual ball bearing turbocharger, including hose bead compressor outlet housing; and a Garrett T3 Inlet, and 3" GT V-band outlet turbine housing.

The Garrett GTX3584RS combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP!

** Hose Bead Outlet Compressor Housing.

PRODUCT FEATURES:

  • Advanced aerodynamics Garrett GTX GEN2 billet aluminum compressor wheel
  • Ultra high flow "RS" blade profile turbine wheel
  • Dual ball bearing CHRA rotating assembly
  • Compact package capable of 1,000HP


    • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 67mm
  • Compressor Wheel Exducer: 84mm
  • Compressor Wheel Trim: 64
  • Compressor Housing A/R: 0.72
  • Compressor Housing Inlet: 4 inch diameter
  • Compressor Housing Outlet: 2.5 inch diameter
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

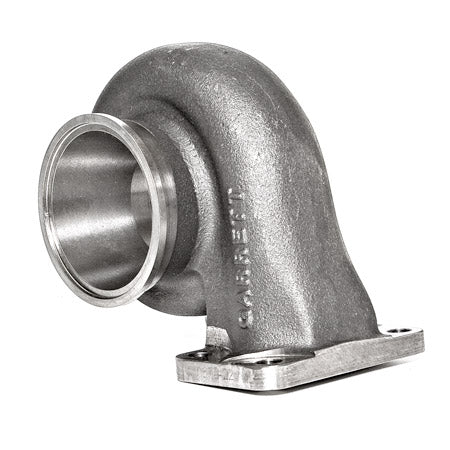

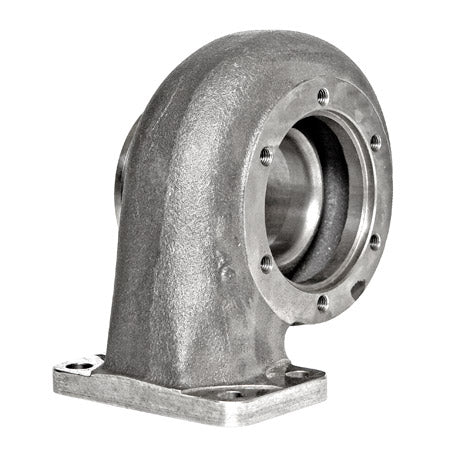

    • TURBINE HOUSING SPECIFICATIONS:
  • T3 Inlet
  • 3 Inch GT V-Band Outlet (81mm centering ring)
  • .82 or 1.06 A/R

    • INSTALLATION HARDWARE:



  • Coolant - Water Options (*Please call for assistance*)
  • Oil feed fitting with .035" restrictor: OIL-021
  • Oil drain flange: FLA-010
  • Oil drain gasket: GSK-008
  • 8mm x 1.25 (thread pitch) Stud: FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: FST-031

    •

    NOTE: Alternate coolant and oil fittings and flanges are available.



  • T3 Inlet Flange (for Turbo Manifold): FLS-038
  • T3 Inlet Gasket: GSK-005
  • 3 Inch V-Band Clamp and 3 inch GT V-Band Flange (81mm centering ring): CLA-024

    • APPLICATION NOTES:

  • The Garrett GTX3584RS includes a new blade profile "RS" turbine wheel and is NOT compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models.


    • COMPRESSOR & TURBINE MAPS:
