Radium Fuel/PCV Rubber Hose - PER FOOT
Radium Fuel/PCV Rubber Hose - PER FOOT
Click image to open expanded view
Radium Fuel/PCV Rubber Hose - PER FOOT
Radium Fuel/PCV Rubber Hose - PER FOOT

Radium Fuel/PCV Rubber Hose - PER FOOT

Price
$4.59
Select Hose Size::1/4" PCV/Fuel Hose - 4AN ($2.59)

Product Description

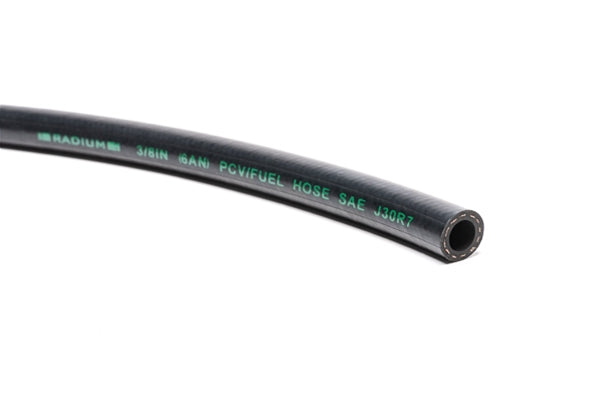

This Radium Engineering Fuel/PCV hose is found in both our crankcase ventilation oil catch can systems and high pressure fuel injection applications. Unlike heater hose, fuel/PCV hose resists engine oil, gasoline, diesel fuel, ethanol fuel (including E85), etc.

NOTE: Fuel/PCV hose should not be used for all applications.
-For submersible fuel hose, go HERE.
-For submersible PTFE fuel tubing, go HERE.

The illustration above is for information purposes only. Available in black ONLY.

CONSTRUCTION

Tube Material: Black Chemigum (NBR)
Reinforcement: 1-Layer Testile Braid
Cover: Black Chloroprene Neoprene
Temperature Range: -40F to 257F
Specifications: Exceeds SAE J30R7

1/4" PCV/Fuel Hose
Inside Diameter: 0.25" ID
Outside Diameter: 0.53" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg

5/16" PCV/Fuel Hose
Inside Diameter: 0.31" ID
Outside Diameter: 0.58" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg

3/8" PCV/Fuel Hose
Inside Diameter: 0.38" ID
Outside Diameter: 0.65" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg

1/2" PCV/Fuel Hose
Inside Diameter: 0.50" ID
Outside Diameter: 0.80" OD
Working Pressure: 400-psi
Burst Pressure: 1600-psi
Vacuum: 24-inHg

5/8" PCV/Fuel Hose
Inside Diameter: 0.63" ID
Outside Diameter: 0.95" OD
Working Pressure: 350-psi
Burst Pressure: 1440-psi
Vacuum: 24-inHg

3/4" PCV/Fuel Hose
Inside Diameter: 0.75" ID
Outside Diameter: 1.17" OD
Working Pressure: 305-psi
Burst Pressure: 1218-psi
Vacuum: 24-inHg

HOW TO ORDER

First select the hose I.D. that you need from the radio buttons. Next, enter the amount of "feet" required in the Quantity box. Round to the nearest foot (decimals not allowed). Units Conversion: 1ft = 305mm

Note: Please allow +/- 2"(50 mm) tolerance. Order excess length if exact cut length is critical.

Examples
Quantity: 1, Radium Engineering will provide 1 foot of hose in the size selected.
Quantity: 6, Radium Engineering will provide 6 continuous feet of hose in the size selected.

NOTE: HOSE IS NOT ELIGIBLE FOR EXCHANGE OR RETURN
