COMPATIBILITY
*15-21 Subaru WRX
Not compatible with the Subaru STi
Has not been tested on right hand drive models
May not be compatible with some aftermarket intake systems.
*Not compatible with the 2018+ Sport Lineartronic (CVT) Transmission

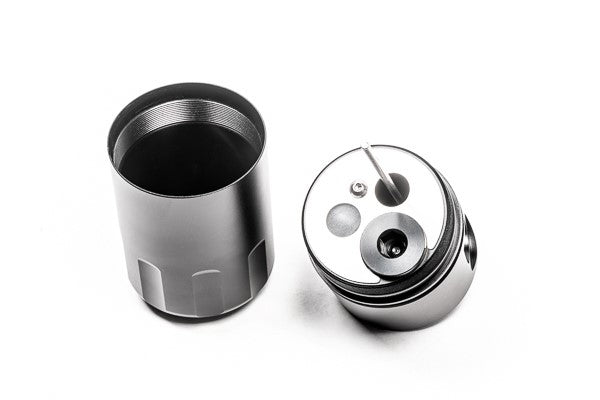

An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from high performance driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
Features:
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake and intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces each

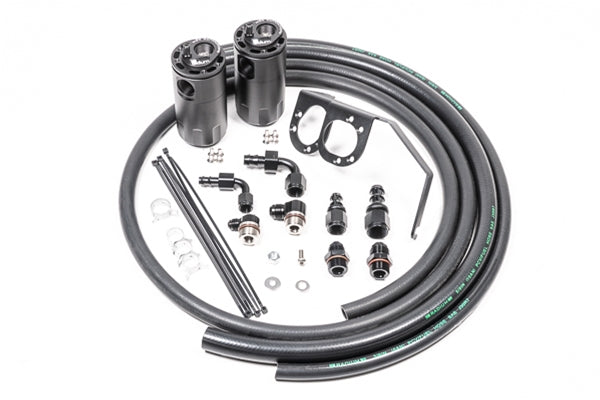

This kit is perfect for stock or modified street cars as a preventative measure to keep oil and sludge out of the intake tract, intercooler, and intake manifold. The direct-injected Subaru FA20F engine in particular has an inherent problem since there are no port injectors to clean the backside of the intake valves.
The forward catch can intercepts the CCV line and the rear catch can intercepts the PCV line. The system is completely sealed and retains factory function of the PCV valve. The catch cans are sealed and will withstand pressure in boosted applications.
As show below, the kit attaches to factory mounting points on the RH side of the engine bay and requires no permanent modification to the vehicle.
For vehicles with a large amount of oil blow-by (highly modified, built engine, etc) please see the Radium Engineering AOS kit for the 15-21 WRX.
The Radium Petcock Drain Kit is not compatible with this kit. For draining/servicing the catch cans, please consult the installation instructions.
SEMA CERTIFIED
THIS KIT IS SEMA CERTIFIED AND 49-STATE EPA LEGAL.
Click the link below to obtain the Certificate of Compliance which may be required for emissions tests and/or inspections.
